PICFTR & PICFTP technologies -Chemistry Capabilities |
|
| SBI is capable of handling a variety of reaction conditions for example but not limited to conditions, reagents and reactions presented below. |
|
|
|
Following are some of the examples where our Process Intensifying Continuous process Flow Reactions can be applied to manufacture an array of advanced intermediates. |
|
Mitsunobu Reaction |
|
|
|
|
With the Mitsunobu Reaction intermolecular substitution leads to esters, ethers, thioethers, isothiocyanates and amines. Via the intramolecular variant, lactones and lactames can be achieved. |
Application of Mitsunobu Reaction: Orlistat / Xanical: Anti-obesity (Hoffman La Roche); Eletriptan (Triptans): Migraine (Pfizer)
|
Heck Reaction |
 |
Application of Heck Reaction: Eletriptan (Triptans): Migraine (Pfizer); Naratriptan : Migraine (Glaxo); Substituted Indoles
|
| Suzuki Reaction |
 |
Application of Suzuki Reaction: Valsartan: Antihypertensive (Novartis); Boscalid: Fungicide (BASF); GR127935: Antihypertensive (Glaxo)
|
| Asymmetric Hydrogenation |
 |
Application of Asymmetric Hydrogenation Reaction: Atrovastatin, Lipitor: Statin class; UK-396,082-03, Anti-thrombotic agent; Tipranavir: Anti-AIDS; drug (Pharmacia); levofloxacin: Anti-bacterial; L-Dopa Ant-Parkinson’s
|
| Tryptamine Intermediates |
 |
Application of Typtamine Intermediates: Sumatryptan: Migraine; Melatonin; 5-Hydroxy tryptamine
|
| Triphosgene Chemistry |
 |
Application of Triphosgene Chemistry: Carbonyl diimidazole: Coupling agent used in the synthesis of Viagra; Coupling agent in peptide synthesis (SBI proprietary technology); Oxacarbazepine: Anti-epileptic (Clariant); Droxicam: Anti-inflammatory |

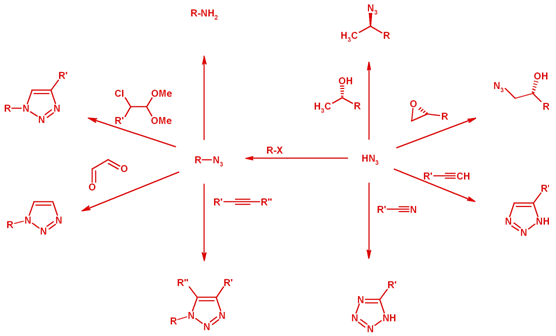

| Hydrazoic Acid / Azide Chemistry |
 |

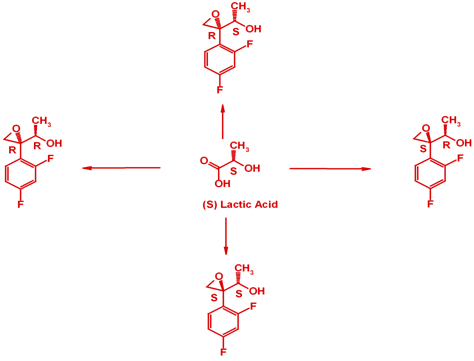

Lactic Acid Chemistry |
 |

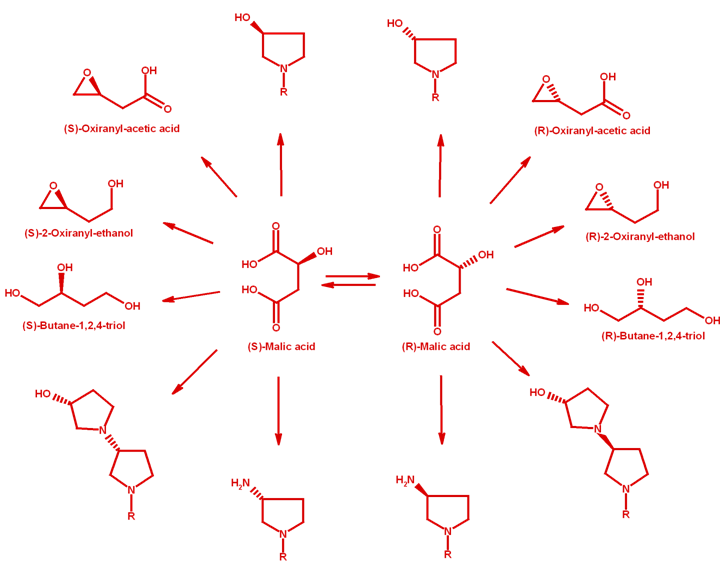

| Malic acid Chemistry (combination of batch and continuous reactions) |
 |

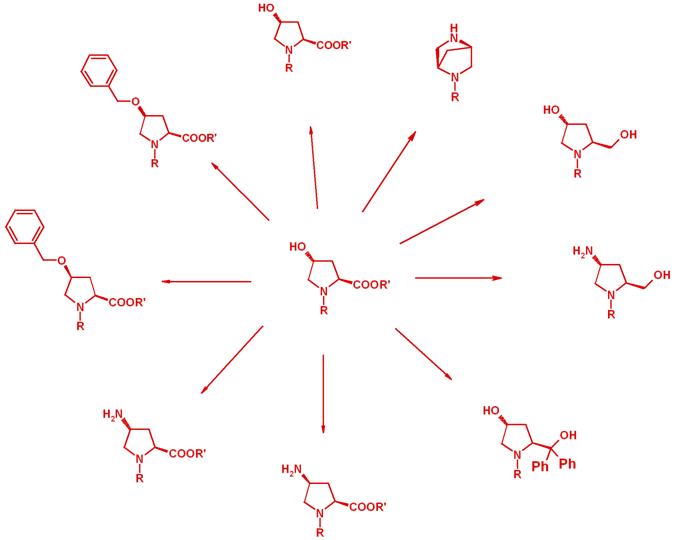

Hydroxy Proline Chemistry |
 |
| Dehydration of Amides |
 |

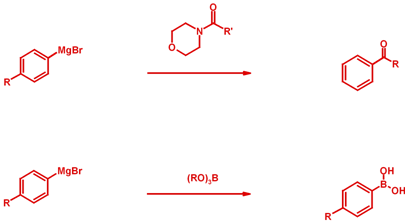

Reactions involving Grignard reagents: |
 |
Application of Grignard Reagents: Voriconazole: Anti-fungal (Pfizer); Itraconazole: Anti-fungal;
|
| Nitration |
 |
Knorr Pyrrole Synthesis |
 |
Pyrazole Synthesis |
 |
Oxazole Synthesis |
 |

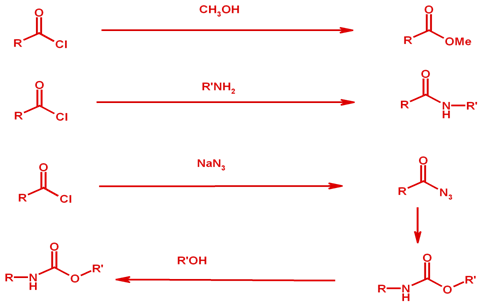

Reactions with Acid Chlorides |
 |
| |
